Hyperspectral imaging

See more than the visible... and enable breakthrough discoveries in precision agriculture, medical, industrial machine vision, security surveillance and much more!

Contact us

image courtesy of GAMAYA

Technology

Leveraging imec’s background in semiconductor fab, equipment and process technology, imec designs and manufactures interference based optical filters at wafer level, deposited and patterned directly on top of image sensor pixels. This unique CMOS based infrastructure provides very compact, clean and high yield optical filter integration with scalability to high-volume and low cost.

Sensors

Hyperspectral imaging sensors

  • Off-the-shelf hyperspectral image sensors, all based on CMOSIS CMV2000 image sensor, have been designed, manufactured and available from imec in quantities of 1 to 1,000+
  • Custom hyperspectral imaging sensors (with different image sensor base, filter specification, pattern layout, etc...) can be designed and manufactured based on specific application requirements.
  • Please contact us for more information on OEM or custom developments inquiries
!-->

Cameras

Hyperspectral imaging cameras

Hyperspectral imaging camera demo-kits including imec HSI sensor(s), camera housing, lens, tripod mounts, reflectance calibration tile, lighting solution, storage box and imec HSImager™ hyperspectral imaging software license are available from imec directly to ease your application work:

!-->

Reference

Interface

Type

#Bands

Spatial resolution
(RAW, per band)

Spectral range

Speed (max)

More info

SNAPSCAN VNIR

USB3.0

Snapshot & Linescan

150+

3,650 x 2,048 px

470 - 900 nm

~ 200 ms

product leaflet

SNAPSCAN VNIR mobile

USB3.0

Snapshot & Linescan

150+

3,650 x 2,048 px

470 - 900 nm

~ 200 ms

product leaflet

SNAPSCAN NIR

USB3.0

Snapshot & Linescan

100+

3,650 x 2,048 px

600 - 970 nm

~ 200 ms

product leaflet

SNAPSCAN SWIR

USB3.0

Snapshot & Linescan

100+

1,200 x 640 px

1100 - 1700 nm

~ 100 ms

product leaflet

XIMEA SNm2x2 RGBNIR

USB3.0

Snapshot mosaic

4

1,024 x 544 px

RGB + NIR

120 fps

product leaflet

XIMEA SNm4x4 VIS

USB3.0

Snapshot mosaic

16

512 x 272 px

470 - 630 nm

120 fps

product leaflet

XIMEA SNm4x4 RedNIR

USB3.0

Snapshot mosaic

16

512 x 272 px

595 - 860 nm

120 fps

product leaflet

XIMEA SNm5x5 NIR

USB3.0

Snapshot mosaic

25

409 x 218 px

665 - 975 nm

120 fps

product leaflet

MOSAIC SWIR 3x3

USB3.0

Snapshot mosaic

9

215 x 160 px

1100 – 1650 nm

120 fps

product leaflet

MOSAIC SWIR 4x4

USB3.0

Snapshot mosaic

16

160 x 120 px

1100 – 1650 nm

120 fps

product leaflet

PHOTONFOCUS SNm4x4 VIS

GigE

Snapshot mosaic

16

512 x 272 px

470 - 630 nm

40 fps

product leaflet

PHOTONFOCUS SNm4x4 RedNIR

GigE

Snapshot mosaic

16

512 x 272 px

595 - 860 nm

40 fps

product leaflet

PHOTONFOCUS SNm5x5 NIR

GigE

Snapshot mosaic

25

409 x 218 px

665 - 975 nm

40 fps

product leaflet

UAV SNmosaic VIS+RedNIR

MavLink

Snapshot mosaic

30+

512 x 272 px

450 – 875 nm

40 fps

product leaflet

UAV SNmosaic VIS+NIR

MavLink

Snapshot mosaic

40+

409 x 218 px

470 – 970 nm

40 fps

product leaflet

UAV SNmosaic NIR+SWIR

MavLink

Snapshot mosaic

40+

409 x 218 px

675 – 1650 nm

40 fps

product leaflet

ARGUS multispectral

CoaXPress

Linescan analog TDI

7

4,096 x length of scan

custom

42KHz

product leaflet

Software

All camera demo-kits come with HSI STUDIO™, the most advanced hyperspectral imaging software developed by imec's integrated imaging & vision system team, to ensure the highest quality hyperspectral imaging datacubes reconstruction. Custom configurations of hardware and software packages are possible and can be discussed.

Applications

  • Remote sensing
  • Precision agriculture
  • Medical guided surgery
  • Microscopy
  • Skin-health
  • Waste recycling and management
  • Pharmaceutical defect inspections
  • Food sorting & quality grading
  • Industrial sorting
  • Security & counterfeit detection
4MP hyperspectral data-cube acquisition of hand: true color RGB rendering picture, spectral plots of Hb versus HbO spectra’s within oxygenated and deoxygenated skin where finger blood circulation is tied by rubber band.
Orthophoto hyperspectral aerial images of large test field of soybean cultures in Brazil: the color image is augmented with spectral features information recolored images to show where specific variations within crop cultures (e.g. disease pattern) are being observed to support precision agriculture decisions – Courtesy of GAMAYA.

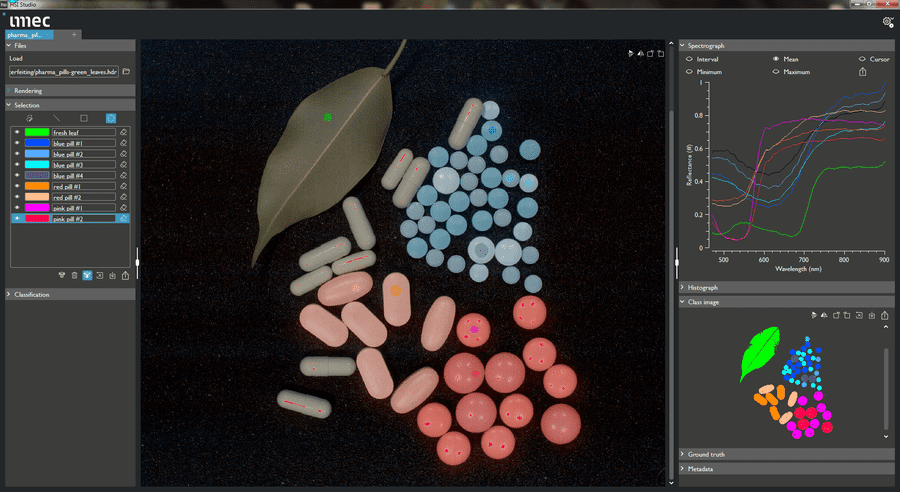

SNAPSCAN hyperspectral imaging VNIR with imec LS 150+ bands in 470 – 900nm range enables robust classification of various different pharmaceutical pills with similar colors but different chemical formulation.
Predictive compositional maps (color RGB & classified images) created using hyperspectral data. Lung cancer tissues are in yellow. Courtesy of university of Innsbruck & Hyperspectral Imaging Intelligence Inc.
SNAPSCAN hyperspectral imaging VNIR with imec LS 150+ bands in 470 – 900nm range enables robust classification of various different ore oxides minerals with various colors and different chemical composition.
Orthophoto hyperspectral aerial images of strawberry test field in Belgium: NDVI images (left) and chlorophyll index map (right) to support precision agriculture decisions – Courtesy of VITO and pcfruit.
Hyperspectral imaging in SWIR range enables robust classification of various different black color textile types including Viscose, Whool, Acrylic, Cotton, PET, etc…
Snapshot hyperspectral imaging with SNm4x4 camera is able to estimate skin blood volume and oxygen saturation with high temporal and spatial resolution - Courtesy of Linkoping University.

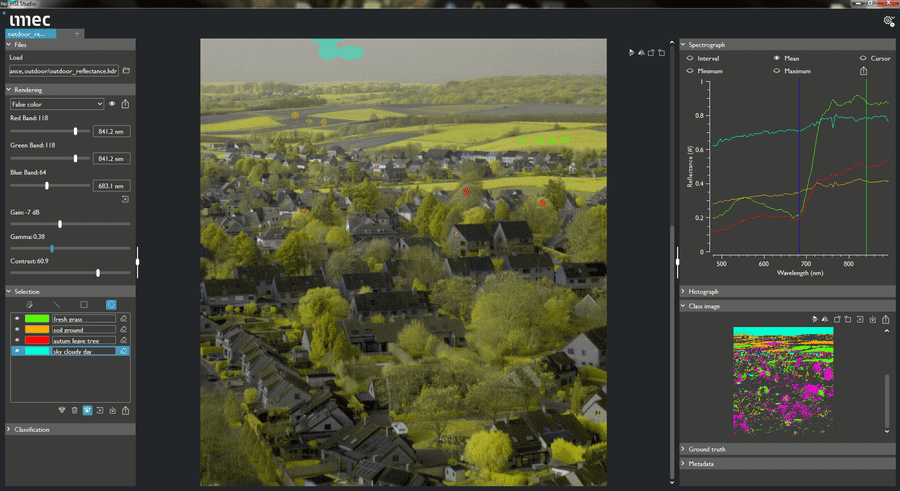

Pseudo NDVI recolored imaged from the SNAPSCAN hyperspectral imaging VNIR range camera showing vigor of vegetation on a cloudy autumn day from imec tower building in Belgium. Fresh grass, soil, sky and autumn leaves spectra are plotted for comparison.
Ripeness of avocados can be easily extracted thanks to their level of reflectance in the NIR wavelength bands. Spectral imaging of food is already being deployed for the food quality grading of fruits and vegetables like apples, kiwis, cherries, avocados, etc...
Blood smear slide image, obtained by the SNAPSCAN hyperspectral imaging camera mounted onto a LEICA pathology microscope: reconstructed color image (bottom) and classified image (top) showing red blood cells versus white blood cells versus background.
Single snapshot of imec SNAPSCAN hyperspectral imaging camera used to digitize artwork paint portrait of Jean Wouters (Oil on panel - Ghent, collection Jan Muller). Work realized in Courtesy of Prof. dr. Maximiliaan Martens, Dept. Art History, Musicology and Theatre Studies, Ghent University.
Snapshot hyperspectral imaging of retina: HSI camera is mounted onto a Topcon fundus camera to extract oxygenation of the different vessels of the retina. Oxygenation maps of the retina are key in supporting early diagnostic of several eye and brain diseases such as Age Macular Degeneration (AMD), Diabetic Retinopathy (DR) and Alzheimer Disease (AD) – Courtesy of Northwestern university.
Hyperspectral imaging in SWIR range enables robust classification of various different white plastics types including PET, PVC, PE, PMMA, PS, PP, etc…
Snapshot hyperspectral imaging of the human brain under guided surgery: the HSI camera is mounted onto a Carl ZEISS surgery microscope. Reconstructed color / Hb / HbO / HbT maps of the brain are key in supporting accurate detection of brain tumors as well as to study hemodynamics of severe epilepsy patients – Courtesy of Polytechnique Montreal.
Fluorescence hyperspectral imaging of four AlexaFluor dyes in living small animals subjects. Using targeted molecular imaging, fluorescent contrast agents find application in endoscopic cancer diagnosis and intra-operative tumour resections – Courtesy of University of Cambridge.
